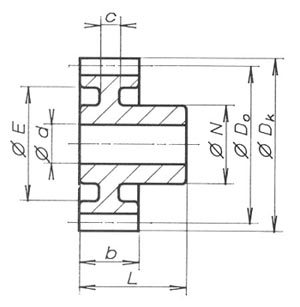

Stirnzahnrad, geradeverzahnt, Modul 3,0
Werkstoff Polyacetal, gespritzt Eingriffswinkel 20° Farbe Weiß
b= 19mm L= 34mm
Z=Zähnezahl Alle Maße in mm | ![](mediapool/129/1298638/resources/27049039.jpg)
| | Z | ø Dk | ø Do | ø d | ø N | E | c | Artikel-Nr. | Netto-Preis p. Stk. |
12 | 42,0 | 36,0 | 12 | 24,0 | - | - | SH 30 12 | 3,94 | 13 | 45,0 | 39,0 | 12 | 24,0 | - | - | SH 30 13 | 4,03 | 14 | 48,0 | 42,0 | 12 | 24,0 | - | - | SH 30 14 | 4,18 | 15 | 51,0 | 45,0 | 12 | 24,0 | 30 | 8 | SH 30 15 | 4,29 | 16 | 54,0 | 48,0 | 12 | 24,0 | 30 | 8 | SH 30 16 | 4,39 | 17 | 57,0 | 51,0 | 12 | 24,0 | 30 | 8 | SH 30 17 | 4,53 | 18 | 60,0 | 54,0 | 12 | 24,0 | 38 | 8 | SH 30 18 | 4,70 | 19 | 63,0 | 57,0 | 12 | 24,0 | 38 | 8 | SH 30 19 | 4,93 | 20 | 66,0 | 60,0 | 12 | 24,0 | 38 | 8 | SH 30 20 | 5,20 | 21 | 69,0 | 63,0 | 12 | 24,0 | 45 | 8 | SH 30 21 | 5,43 | 22 | 72,0 | 66,0 | 12 | 24,0 | 45 | 8 | SH 30 22 | 5,57 | 23 | 75,0 | 69,0 | 12 | 24,0 | 52 | 8 | SH 30 23 | 5,73 | 24 | 78,0 | 72,0 | 12 | 24,0 | 52 | 8 | SH 30 24 | 5,91 | 25 | 81,0 | 75,0 | 14 | 28,0 | 58 | 8 | SH 30 25 | 5,96 | 26 | 84,0 | 78,0 | 14 | 28,0 | 58 | 8 | SH 30 26 | 6,03 | 27 | 87,0 | 81,0 | 14 | 28,0 | 58 | 8 | SH 30 27 | 6,11 | 28 | 90,0 | 84,0 | 14 | 28,0 | 68 | 8 | SH 30 28 | 6,19 | 30 | 96,0 | 90,0 | 14 | 28,0 | 68 | 8 | SH 30 30 | 6,26 | 32 | 102,0 | 96,0 | 16 | 32,0 | 71 | 8 | SH 30 32 | 6,39 | 33 | 105,0 | 99,0 | 16 | 32,0 | 71 | 8 | SH 30 35 | 6,48 | 35 | 111,0 | 105,0 | 16 | 32,0 | 80 | 8 | SH 30 36 | 6,50 | 38 | 120,0 | 114,0 | 16 | 32,0 | 89 | 8 | SH 30 38 | 6,60 | 40 | 126,0 | 120,0 | 16 | 32,0 | 95 | 8 | SH 30 40 | 6,68 | 45 | 141,0 | 135,0 | 16 | 32,0 | 110 | 8 | SH 30 48 | 6,81 |
|
|
