Stirnzahnrad, geradeverzahnt, Modul 2,0
Werkstoff Polyacetal, gespritzt Eingriffswinkel 20° Farbe Weiß
b= 15mm L= 27mm

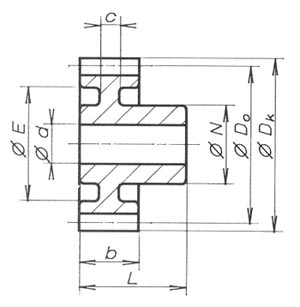

Z=Zähnezahl Alle Maße in mm | ![](mediapool/129/1298638/resources/27049037.jpg)
| | Z | ø Dk | ø Do | ø d | ø N | E | c | Artikel-Nr. | Netto-Preis p. Stk. |
12 | 28,0 | 24,0 | 8 | 18,5 | - | - | SH 20 12 | 2,50 | 13 | 30,0 | 26,0 | 8 | 18,5 | - | - | SH 20 13 | 2,65 | 14 | 32,0 | 28,0 | 8 | 18,5 | - | - | SH 20 14 | 2,76 | 15 | 34,0 | 30,0 | 8 | 18,5 | - | - | SH 20 15 | 2,90 | 16 | 36,0 | 32,0 | 8 | 17,5 | 23 | 6 | SH 20 16 | 2,99 | 17 | 38,0 | 34,0 | 8 | 17,5 | 25 | 6 | SH 20 17 | 3,05 | 18 | 40,0 | 36,0 | 8 | 17,5 | 26 | 6 | SH 20 18 | 3,18 | 19 | 42,0 | 38,0 | 8 | 17,5 | 28 | 6 | SH 20 19 | 3,20 | 20 | 44,0 | 40,0 | 10 | 20,0 | 29 | 6 | SH 20 20 | 3,61 | 21 | 46,0 | 42,0 | 10 | 20,0 | 29 | 6 | SH 20 21 | 3,70 | 22 | 48,0 | 44,0 | 10 | 20,0 | 29 | 6 | SH 20 22 | 3,77 | 23 | 50,0 | 46,0 | 10 | 20,0 | 36 | 6 | SH 20 23 | 3,90 | 24 | 52,0 | 48,0 | 10 | 24,0 | 36 | 6 | SH 20 24 | 4,00 | 25 | 54,0 | 50,0 | 10 | 24,0 | 36 | 6 | SH 20 25 | 4,29 | 26 | 56,0 | 52,0 | 10 | 24,0 | 40 | 6 | SH 20 26 | 4,39 | 27 | 58,0 | 54,0 | 10 | 24,0 | 40 | 6 | SH 20 27 | 4,56 | 28 | 60,0 | 56,0 | 10 | 24,0 | 40 | 6 | SH 20 28 | 4,73 | 30 | 64,0 | 60,0 | 10 | 24,0 | 46 | 6 | SH 20 30 | 4,96 | 32 | 68,0 | 64,0 | 10 | 26,0 | 46 | 6 | SH 20 32 | 5,11 | 35 | 74,0 | 70,0 | 12 | 26,0 | 56 | 6 | SH 20 35 | 5,17 | 36 | 76,0 | 72,0 | 12 | 26,0 | 56 | 6 | SH 20 36 | 5,34 | 38 | 80,0 | 76,0 | 12 | 26,0 | 64 | 6 | SH 20 38 | 5,49 | 40 | 84,0 | 80,0 | 12 | 26,0 | 64 | 6 | SH 20 40 | 5,56 | 42 | 88,0 | 84,0 | 12 | 26,0 | 64 | 6 | SH 20 42 | 5,66 | 45 | 94,0 | 90,0 | 14 | 30,0 | 70 | 6 | SH 20 45 | 5,73 | 48 | 100,0 | 96,0 | 14 | 30,0 | 76 | 6 | SH 20 48 | 5,80 | 50 | 104,0 | 100,0 | 14 | 30,0 | 80 | 6 | SH 20 50 | 5,89 | 55 | 114,0 | 110,0 | 14 | 30,0 | 90 | 6 | SH 20 55 | 5,96 | 60 | 124,0 | 120,0 | 14 | 30,0 | 100 | 6 | SH 20 60 | 6,00 | 70 | 144,0 | 140,0 | 14 | 30,0 | 120 | 6 | SH 20 70 | 6,15 |
|
|
