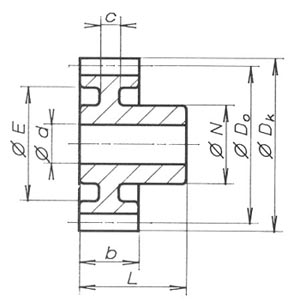

Stirnzahnrad, geradeverzahnt, Modul 1,25
Werkstoff Polyacetal, gespritzt Eingriffswinkel 20° Farbe Weiß
b= 10mm L= 19mm
Z=Zähnezahl Alle Maße in mm | ![](mediapool/129/1298638/resources/27049030.jpg)
| | Z | ø Dk | ø Do | ø d | ø N | E | c | Artikel-Nr. | Preis p. Stk. |
12 | 17,50 | 15,00 | 5 | 9 | - | - | SH 125 12 | 1,53 | 13 | 18,75 | 16,25 | 5 | 9 | - | - | SH 125 13 | 1,55 | 14 | 20,00 | 17,50 | 5 | 9 | - | - | SH 125 14 | 1,61 | 15 | 21,25 | 18,75 | 5 | 9 | 13,5 | 7 | SH 125 15 | 1,64 | 16 | 22,50 | 20,00 | 5 | 9 | 13,5 | 7 | SH 125 16 | 1,66 | 17 | 23,75 | 21,25 | 5 | 9 | 13,5 | 7 | SH 125 17 | 1,72 | 18 | 25,00 | 22,50 | 5 | 12 | 16,0 | 7 | SH 125 18 | 1,80 | 19 | 26,25 | 23,75 | 5 | 12 | 16,0 | 7 | SH 125 19 | 1,87 | 20 | 27,50 | 25,00 | 5 | 12 | 16,0 | 7 | SH 125 20 | 1,92 | 21 | 28,75 | 26,25 | 6 | 15 | 19,0 | 7 | SH 125 21 | 1,98 | 22 | 30,00 | 27,50 | 6 | 15 | 19,0 | 7 | SH 125 22 | 2,06 | 23 | 31,25 | 28,75 | 6 | 15 | 19,0 | 7 | SH 125 23 | 2,11 | 24 | 32,50 | 30,00 | 6 | 15 | 21,5 | 7 | SH 125 24 | 2,13 | 25 | 33,75 | 31,25 | 6 | 15 | 21,5 | 7 | SH 125 25 | 2,39 | 26 | 35,00 | 32,50 | 6 | 18 | 24,0 | 5,5 | SH 125 26 | 2,44 | 27 | 36,25 | 33,75 | 6 | 18 | 24,0 | 5,5 | SH 125 27 | 2,49 | 28 | 37,50 | 35,00 | 8 | 18 | 24,0 | 5,5 | SH 125 28 | 2,54 | 30 | 40,00 | 37,50 | 8 | 18 | 28,0 | 5,5 | SH 125 30 | 2,56 | 32 | 42,50 | 40,00 | 8 | 18 | 28,0 | 5,5 | SH 125 32 | 2,72 | 35 | 46,25 | 43,75 | 8 | 18 | 28,0 | 5,5 | SH 125 35 | 2,82 | 36 | 47,50 | 45,00 | 8 | 18 | 37,5 | 5,5 | SH 12 536 | 2,93 | 38 | 50,00 | 47,50 | 8 | 18 | 37,5 | 5,5 | SH 12 538 | 3,01 | 40 | 52,50 | 50,00 | 8 | 18 | 37,5 | 5,5 | SH 12 540 | 3,16 | 42 | 55,00 | 52,50 | 8 | 18 | 37,5 | 5,5 | SH 125 42 | 3,19 | 45 | 58,75 | 56,25 | 8 | 21 | 47,5 | 5,5 | SH 125 45 | 3,28 | 48 | 62,50 | 60,00 | 8 | 21 | 47,5 | 5,5 | SH 125 48 | 3,39 | 50 | 65,00 | 62,50 | 8 | 21 | 47,5 | 5,5 | SH 125 50 | 3,45 | 52 | 67,50 | 65,00 | 10 | 21 | 57,0 | 5,5 | SH 125 52 | 3,57 | 54 | 70,00 | 67,50 | 10 | 21 | 57,0 | 5,5 | SH 125 54 | 3,65 | 55 | 71,25 | 68,75 | 10 | 21 | 57,0 | 5,5 | SH 125 55 | 3,72 | 56 | 72,50 | 70,00 | 10 | 21 | 57,0 | 5,5 | SH 125 56 | 3,92 | 60 | 77,50 | 75,00 | 10 | 21 | 67,0 | 5,5 | SH 125 60 | 4,10 | 64 | 82,50 | 80,00 | 10 | 21 | 67,0 | 5,5 | SH 125 64 | 4,27 | 65 | 83,75 | 81,25 | 10 | 21 | 67,0 | 5,5 | SH 125 65 | 4,39 | 70 | 90,00 | 87,50 | 10 | 21 | 77,0 | 5,5 | SH 125 70 | 4,47 | 72 | 92,50 | 90,00 | 12 | 21 | 77,0 | 5,5 | SH 125 72 | 4,54 | 75 | 96,25 | 93,75 | 10 | 21 | 77,0 | 5,5 | SH 125 75 | 4,59 | 80 | 102,50 | 100,00 | 12 | 24 | 87,0 | 5,5 | SH 125 80 | 4,71 | 90 | 115,00 | 112,50 | 12 | 24 | 97,0 | 5,5 | SH 125 90 | 4,85 | 100 | 127,50 | 125,00 | 12 | 24 | 107,0 | 5,5 | SH 125 100 | 5,00 | 110 | 140,00 | 137,50 | 12 | 24 | 122,0 | 5,5 | SH 125 110 | 5,18 |
|
|
