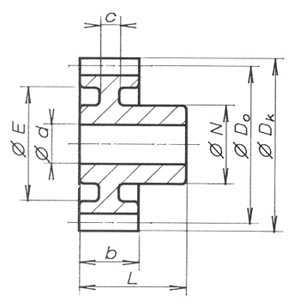

Stirnzahnrad, geradeverzahnt, Modul 1,0
Werkstoff Polyacetal, gespritzt Eingriffswinkel 20° Farbe Weiß
b= 9mm L= (von Z12 bis Z23) 17mm (von Z24 bis Z140) 18mm
Z=Zähnezahl Alle Maße in mm | ![](mediapool/129/1298638/resources/27049028.jpg)
| | Z | ø Dk | ø Do | ø d | ø N | E | c | Artikel-Nr. | Preis p. Stk. |
12 | 14,0 | 12,0 | 4 | 9 | - | - | SH 10 12 | 1,29 | 13 | 15,0 | 13,0 | 4 | 9 | - | - | SH 10 13 | 1,32 | 14 | 16,0 | 14,0 | 4 | 9 | - | - | SH 10 14 | 1,34 | 15 | 17,0 | 15,0 | 4 | 9 | - | - | SH 10 15 | 1,34 | 16 | 18,0 | 16,0 | 4 | 9 | - | - | SH 10 16 | 1,38 | 17 | 19,0 | 17,0 | 4 | 9 | - | - | SH 10 17 | 1,40 | 18 | 20,0 | 18,0 | 4 | 9 | 13,5 | 6 | SH 10 18 | 1,43 | 19 | 21,0 | 19,0 | 4 | 9 | 13,5 | 6 | SH 10 19 | 1,53 | 20 | 22,0 | 20,0 | 4 | 9 | 13,5 | 6 | SH 10 20 | 1,59 | 21 | 23,0 | 21,0 | 5 | 12 | 16,0 | 6 | SH 10 21 | 1,61 | 22 | 24,0 | 22,0 | 5 | 12 | 16,0 | 6 | SH 10 22 | 1,64 | 23 | 25,0 | 23,0 | 5 | 12 | 16,0 | 6 | SH 10 23 | 1,64 | 24 | 26,0 | 24,0 | 6 | 15 | 19,0 | 6 | SH 10 24 | 1,66 | 25 | 27,0 | 25,0 | 6 | 15 | 19,0 | 6 | SH 10 25 | 1,72 | 26 | 28,0 | 26,0 | 6 | 15 | 19,0 | 6 | SH 10 26 | 1,80 | 27 | 29,0 | 27,0 | 6 | 15 | 19,0 | 6 | SH 10 27 | 1,82 | 28 | 30,0 | 28,0 | 6 | 15 | 22,0 | 6 | SH 10 28 | 1,85 | 30 | 32,0 | 30,0 | 6 | 15 | 22,0 | 6 | SH 10 30 | 1,87 | 32 | 34,0 | 32,0 | 6 | 18 | 24,5 | 4,6 | SH 10 32 | 1,92 | 35 | 37,0 | 35,0 | 8 | 18 | 24,5 | 4,6 | SH 10 35 | 2,06 | 36 | 38,0 | 36,0 | 8 | 18 | 28,0 | 4,6 | SH 10 36 | 2,11 | 38 | 40,0 | 38,0 | 8 | 18 | 28,0 | 4,6 | SH 10 38 | 2,13 | 40 | 42,0 | 40,0 | 8 | 18 | 28,0 | 4,6 | SH 10 40 | 2,19 | 42 | 44,0 | 42,0 | 8 | 18 | 37,0 | 4,6 | SH 10 42 | 2,34 | 45 | 47,0 | 45,0 | 8 | 18 | 37,0 | 4,6 | SH 10 45 | 2,54 | 48 | 50,0 | 48,0 | 8 | 18 | 37,0 | 4,6 | SH 10 48 | 2,65 | 50 | 52,0 | 50,0 | 8 | 18 | 37,0 | 4,6 | SH 10 50 | 3,01 | 52 | 54,0 | 52,0 | 8 | 21 | 47,0 | 4,6 | SH 10 52 | 3,10 | 54 | 56,0 | 54,0 | 8 | 21 | 47,0 | 4,6 | SH 10 54 | 3,19 | 55 | 57,0 | 55,0 | 8 | 21 | 47,0 | 4,6 | SH 10 55 | 3,28 | 56 | 58,0 | 56,0 | 8 | 21 | 47,0 | 4,6 | SH 10 56 | 3,39 | 58 | 60,0 | 58,0 | 8 | 21 | 58,0 | 4,6 | SH 10 58 | 3,48 | 60 | 62,0 | 60,0 | 8 | 21 | 47,0 | 4,6 | SH 10 60 | 3,60 | 64 | 66,0 | 64,0 | 10 | 21 | 57,0 | 4,6 | SH 10 64 | 3,65 | 65 | 67,0 | 65,0 | 10 | 21 | 57,0 | 4,6 | SH 10 65 | 3,67 | 70 | 72,0 | 70,0 | 10 | 21 | 57,0 | 4,6 | SH 10 70 | 3,71 | 72 | 74,0 | 72,0 | 10 | 21 | 67,0 | 4,6 | SH 10 72 | 3,81 | 75 | 77,0 | 75,0 | 10 | 21 | 67,0 | 4,6 | SH 10 75 | 3,92 | 80 | 82,0 | 80,0 | 10 | 21 | 67,0 | 4,6 | SH 10 80 | 4,10 | 85 | 87,0 | 85,0 | 10 | 21 | 77,0 | 4,6 | SH 10 85 | 4,27 | 90 | 92,0 | 90,0 | 10 | 21 | 77,0 | 4,6 | SH 10 90 | 4,54 | 100 | 102,0 | 100,0 | 12 | 24 | 87,0 | 4,6 | SH 10 100 | 5,06 | 110 | 112,0 | 110,0 | 12 | 24 | 97,0 | 4,6 | SH 10 110 | 5,09 | 120 | 122,0 | 120,0 | 12 | 24 | 107,0 | 4,6 | SH 10 120 | 5,75 | 130 | 132,0 | 130,0 | 12 | 24 | 115,0 | 4,6 | SH 10 130 | 6,00 | 140 | 142,0 | 140,0 | 12 | 24 | 125,0 | 4,6 | SH 10 140 | 6,26 |
|
|
