Zahnstange, geradeverzahnt, Modul 0,5 - 3,0
Werkstoff Polyacetal (Hostaform C), gespritzt Eingriffswinkel 20° Farbe Weiß

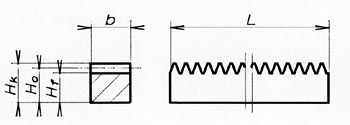

Alle Maße in mm | ![](mediapool/129/1298638/resources/27049045.jpg)
|
| | | Modul | Hk | Ho | b | L | | | Artikel-Nr. | Netto-Preis p. Stk. |
0,5 | 4,5 | 4,0 | 4,0 | 250,0 | | | ZH 05 25 | 0,78 | 0,5 | 6,0 | 5,5 | 4,0 | 250,0 | | | ZH 05 25 | 0,88 | 0,7 | 6,7 | 6,0 | 6,0 | 250,0 | | | ZH 07 25 | 1,56 | 1,0 | 9,0 | 8,0 | 9,0 | 250,0 | | | ZH 10 25 | 2,26 | 1,25 | 11,0 | 9,75 | 10,0 | 250,0 | | | ZH 125 25 | 2,90 | 1,5 | 12,0 | 10,5 | 12,0 | 250,0 | | | ZH 15 25 | 3,51 | 2,0 | 11,0 | 9,0 | 15,4 | 250,0 | | | ZH 20 25 | 5,73 | 3,0 | 15,0 | 12,0 | 19,4 | 250,0 | | | ZH 30 25 | 7,46 |
|
|
